Stiftlasmachines

U kunt bij ons terecht voor de aanschaf en verhuur van stiftlasmachines. Wij beschikken over een uitgebreid assortiment stiftlasmachines. Hieronder vindt u de specificaties van ons aanbod. Heeft u vragen? Neemt u dan gerust contact met ons op.

Stiftlasmachines (Inverter)

Technische gegevens stiftlasapparaat

Stiftlasbereik Ø3 (pins) - M8 (RB-draadbouten)
Stiftlasstroom 280A (gereguleerd)
Lastijd 40 - 400 mS
Voedingsspanning 230V / 1 fase / 16A
Afmetingen (BxHxL) 175 x 300 x 390 mm
Inschakelduur maximaal 60 pins / min
Geen laadspanning 80 V
Gewicht 11 kg

Technische gegevens stiftlaspistool A 38

Lasbereik CHP : Cup Head Pins
Nagellengtebereik Alle bereik
Lasproces "Contact"
Springinstellingen Traploos instelbaar
Kabellengte 10 meter
Bescherming IP 2x
Gewicht (zonder kabel) 0,6 kg
Optioneel CHP-ISOL-set voor het lassen van CHP-ISOL op aluminiumisolatie

Compact 300i Unit

    • Thomas Welding systems has developed a SMALL, LIGHT, COMPACT stud welding machine based on the most recent invertor technology ( 5th generation ).
    • The COMPACT 300i is a lightweight, 11 Kg, digital portable inverter drawn arc studwelder, capable of welding from M 3 up to M 8 studs (Reduced Base)
    • The weight of the new pins and stud welder is only a third of currently available products, particularly suitable for a variety of repair, installation and supply work as well as for light or medium duty use.
    • The power supply operates on SINGLE PHASE power 230V – 16A.
    • The weld time is infinitely adjustable for preciseness.
    • Weld current regulation improves Stud Welding consistency.
    • The superior chopping frequency of 30 KHz, provides a much smoother arc than any competitive invertor.
  • Designed with calling fan and thermo-overload circuitry.

A-38 Gun

    • The A-38 stud welding gun is a multi-purpose, compact, lightweight tool designed for use in the arc stud welding process.
    • This compact gun is ideal for fielding welding work, and its compact size enables use in hard to reach areas.
    • Welds any length pins with a diameter range of Ø 3 mm through Ø 8 mm.
    • Welds any length studs with a diameter range of M 3 through M 10.
  • Features:
- Compact and tough for heavy duty use.
- Automatic length compensation system for different stud lengths and surface conditions
- High service life through high-grade mechanical components
- Space saving due to internal welding cable.
- More powerful solenoid for faster welding.
- Precision guidance protected from welding spatters.

Technische gegevens stiftlasapparaat

Stiftlasbereik Ø3 (pins) - M8 (RB-draadbouten)
Stiftlasstroom 450A (gereguleerd)
Lastijd 10 - 500 mS
Voedingsspanning 400 V / 3 phases
Afmetingen (BxHxL) 180 X 330 X 410
Inschakelduur maximaal 60 pins / min
Geen laadspanning 80 V
Gewicht 15 kg

Technische gegevens stiftlaspistool A 38

Lasbereik CHP : Cup Head Pins
Nagellengtebereik Alle bereik
Lasproces "Contact"
Springinstellingen Traploos instelbaar
Kabellengte 10 meter
Bescherming IP 2x
Gewicht (zonder kabel) 0,6 kg
Optioneel CHP-ISOL-set voor het lassen van CHP-ISOL op aluminiumisolatie

Compact 500i Unit

    • The COMPACT 500i is a lightweight, 15 Kg, digital portable inverter drawn arc studwelder, capable of welding from M 3 up to M 10 studs (Reduced Base)
    • Both the weld time and weld current are infinitely adjustable for preciseness and repeatability.
    • The superior chopping frequency of 20 KHz provides a much smoother arc than any competitive inverter-based stud welder. Because the COMPACT 500i uses inverter technology, it delivers faster arc response and superior repeatability compared to traditional transformer/rectifier-based stud welders.
    • Superior performance for welding studs made of steel, stainless steel and aluminum.
    • Minimizing spatter generation and excellent welding fillet appearance by Hybrid technology newly developed for studwelding.
    • Dual-core processors technology on the machine, thereby increasing efficiency. For the welder this means a significant increase in response and welding performance.
    • The LCD Display provides quick viewing of all variables for greater accuracy and repeatability.
    • Self-monitoring system. The monitoring of all functions is clearly displayed by LED on the front panel for immediate diagnostic.
  • Designed with thermostatically controlled cooling fan and thermo-overload circuitry.

A-38 Gun

    • The A-38 stud welding gun is a multi-purpose, compact, lightweight tool designed for use in the arc stud welding process.
    • This compact gun is ideal for fielding welding work, and its compact size enables use in hard to reach areas.
    • Welds any length pins with a diameter range of Ø 3 mm through Ø 8 mm.
    • Welds any length studs with a diameter range of M 3 through M 12.
  • Features:
- Compact and tough for heavy duty use.
- Automatic length compensation system for different stud lengths and surface conditions
- High service life through high-grade mechanical components
- Space saving due to internal welding cable.
- More powerful solenoid for faster welding.
- Precision guidance protected from welding spatters
  • Optional: precision linear ball track of gun piston

Technische gegevens stiftlaspistool

Lasbereik M3 – M12 mm
Lasstroom 100 - 650A (gereguleerd)
Lasttijd 0 - 600 mS
Voedingsspanning 400V / 3 fasen (230V op aanvraag)
Zekering T 20A
Afmetingen (BxHxL) 250 x 330 x430 mm
Inschakelduur tot 25 noppen / min
Geen laadspanning 80 V
Efficiëntie 0,87
Gastoevoer Optioneel
Isolatie F
Gewicht 20 kg

Technische gegevens stiftlaspistool A 38

Lasbereik CHP : Cup Head Pins
Nagellengtebereik Alle bereik
Lasproces "Contact"
Springinstellingen Traploos instelbaar
Kabellengte 10 meter
Bescherming IP 2x
Gewicht (zonder kabel) 0,6 kg
Optioneel CHP-ISOL-set voor het lassen van CHP-ISOL op aluminiumisolatie

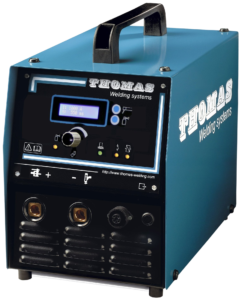

Compact 700i Unit

  • The COMPACT 700i is a lightweight, 20 Kg, digital portable inverter drawn arc studwelder, capable of welding from M 3 up to M 12 studs (Reduced Base)
  • Both the weld time and weld current are infinitely adjustable for preciseness and repeatability.
  • Dual-core processors technology on the machine, thereby increasing in response and welding performance.
  • The LCD Display provides quick viewing of all variables for greater accuracy and repeatability.
  • Self-monitoring system. The monitoring of all functions is clearly displayed by LED on the front panel for immediate diagnostic.
  • The superior chopping frequency of 20 KHz provides a much smoother arc than any competitive invertor-based stud welder. Because the COMPACT 700i uses invertor technology, it delivers faster arc response and superior repeatability compared to traditional transformer/rectifier-based stud welders.
  • Superior performance for welding studs are made of steel, stainless steel and aluminium.
  • Minimizing spatter generation and excellent welding fillet appearance by Hybrid technology newly developed for stud welding.
  • Designed with thermostatically controlled cooling fan and thermo-overload circuitry.

Optional Features:

  • The “Advanced Studwelding Control” module adds the following features : Monitoring all parameters of the weld cycle including immediate digital verification of all weld parameters, adaptation to changing plate conditions, diagnosis of weld, memories, data recorder, programmable pilot arc, feature locking, maintenance tracker,  etc.
  • The “Auto” module interfaces the welder with automatic welding heads, feeding systems, CNC, and programmable logic controllers.

A-38 Gun

    • The A-38 stud welding gun is handy, lightweight electronically controlled gun with automatic length compensation, designed for universal applications. This compact gun is ideal for fielding welding work, and its compact size enables use in hard to reach areas.
    • Welds any length pins with a diameter range of Ø 3 mm through Ø 8 mm.
  • Welds any length studs with a diameter range of M 3 through M 12

Features:

    • Compact and tough for heavy duty use.
    • Automatic length compensation system for different stud lengths and surface conditions.
    • High service life through high-grade mechanical components.
    • Space saving due to internal welding cable.
    • More powerful solenoid for faster welding.
    • Precision guidance protected from welding spatters.
  • Optional: Precision linear ball track of gun piston.

Technische gegevens stiftlaspistool

Lasbereik M3 – M16 mm
Lasstroom 100 - 1200A (gereguleerd)
Lasttijd 10 - 1050 mS
Voedingsspanning 400V / 3 fasen (230V op aanvraag)
Zekering T 20A
Afmetingen (BxHxL) 250 x 330 x430 mm
Inschakelduur tot 25 noppen / min
Geen laadspanning 80 V
Efficiëntie 0,87
Gastoevoer Optioneel
Isolatie F
Gewicht 24 kg

Technische gegevens stiftlaspistool A 38

Lasbereik CHP : Cup Head Pins
Nagellengtebereik Alle bereik
Lasproces "Contact"
Springinstellingen Traploos instelbaar
Kabellengte 10 meter
Bescherming IP 2x
Gewicht (zonder kabel) 0,6 kg
Optioneel CHP-ISOL-set voor het lassen van CHP-ISOL op aluminiumisolatie

Technische gegevens stiftlaspistool A 58 P

Stiftlasbereik M3 - M16
Lasproces Getrokken boog
Materiaal studs zacht staal, roestvrij staal, pennen met aluminium basis
Stud lengte elke lengte
Lengte van de nagels elke lengte
Insteekinstellingen traploos instelbaar
Kabellengte 5 meter (zeer flexibel)
Kabelsectie 35 mm2
Bescherming IP 2x
Gewicht 2 kg (zonder kabel)
Optioneel plunge-demper (A58P)

Compact 1000i Unit

    • The COMPACT 1000i is a lightweight, 20 Kg, digital portable inverter drawn arc studwelder, capable of welding from M 3 up to M 14 studs (Reduced Base M16)
    • Both the weld time and weld current are infinitely adjustable for preciseness and repeatability.
    • Dual-core processors technology on the machine, thereby increasing in response and welding performance.
    • The LCD Display provides quick viewing of all variables for greater accuracy and repeatability.
    • Self-monitoring system. The monitoring of all functions is clearly displayed by LED on the front panel for immediate diagnostic.
    • The superior chopping frequency of 20 KHz provides a much smoother arc than any competitive invertor-based stud welder. Because the COMPACT 1000i uses invertor technology, it delivers faster arc response and superior repeatability compared to traditional transformer/rectifier-based stud welders.
    • Superior performance for welding studs are made of steel, stainless steel and aluminium.
    • Minimizing spatter generation and excellent welding fillet appearance by Hybrid technology newly developed for stud welding.
  • Designed with thermostatically controlled cooling fan and thermo-overload circuitry.

Optional Features:

    • The “Advanced Studwelding Control” module adds the following features : Monitoring all parameters of the weld cycle including immediate digital verification of all weld parameters, adaptation to changing plate conditions, diagnosis of weld, memories, data recorder, programmable pilot arc, feature locking, maintenance tracker,  etc.
  • The “Auto” module interfaces the welder with automatic welding heads, feeding systems, CNC, and programmable logic controllers.

A-58 Gun

    • The A-58 stud welding gun is handy, lightweight electronically controlled gun with automatic length compensation, designed for universal applications. This compact gun is ideal for fielding welding work, and its compact size enables use in hard to reach areas.
    • Welds any length pins with a diameter range of Ø 3 mm through Ø 16 mm.
  • Welds any length studs with a diameter range of M 3 through M 16.

Features:

    • Compact and tough for heavy duty use.
    • Automatic length compensation system for different stud lengths and surface conditions.
    • High service life through high-grade mechanical components.
    • Space saving due to internal welding cable.
    • More powerful solenoid for faster welding.
  • Precision guidance protected from welding spatters.

Technische gegevens stiftlasmachine

Stiftlasbereik M3 - M16
Lasstroom 100 - 1200A (gereguleerd)
Lastijd 10 - 1050 mS
Voedingsspanning 400V / 3 fasen (230V op aanvraag)
Zekering T 20A
Afmetingen (BxHxL) 250 x 330 x430 mm
Inschakelduur tot 25 noppen / min
Geen laadspanning 80 V
Efficiëntie 0,87
Gastoevoer Optioneel
Isolatie F
Gewicht 24 kg

Technische gegevens stiftlaspistool A 58 P

Stiftlasbereik M3 - M16
Lasproces Getrokken boog
Materiaal studs zacht staal, roestvrij staal, pennen met aluminium basis
Stud lengte elke lengte
Lengte van de nagels elke lengte
Insteekinstellingen traploos instelbaar
Kabellengte 5 meter (zeer flexibel)
Kabelsectie 35 mm2
Bescherming IP 2x
Gewicht 2 kg (zonder kabel)
Optioneel plunge-demper (A58P)

Compact 1400i Unit

    • The COMPACT 1400i is a lightweight, 24 Kg, digital portable inverter drawn arc studwelder, capable of welding from M 3 up to M 16 studs (Reduced Base)
    • Both the weld time and weld current are infinitely adjustable for preciseness and repeatability.
    • Dual-core processors technology on the machine, thereby increasing in response and welding performance.
    • The LCD Display provides quick viewing of all variables for greater accuracy and repeatability.
    • Self-monitoring system. The monitoring of all functions is clearly displayed by LED on the front panel for immediate diagnostic.
    • The superior chopping frequency of 20 KHz provides a much smoother arc than any competitive invertor-based stud welder. Because the COMPACT 1400i uses invertor technology, it delivers faster arc response and superior repeatability compared to traditional transformer/rectifier-based stud welders.
    • Superior performance for welding studs are made of steel, stainless steel and aluminium.
    • Minimizing spatter generation and excellent welding fillet appearance by Hybrid technology newly developed for stud welding.
  • Designed with thermostatically controlled cooling fan and thermo-overload circuitry.

Optional Features:

    • The “Advanced Studwelding Control” module adds the following features : Monitoring all parameters of the weld cycle including immediate digital verification of all weld parameters, adaptation to changing plate conditions, diagnosis of weld, memories, data recorder, programmable pilot arc, feature locking, maintenance tracker,  etc.
  • The “Auto” module interfaces the welder with automatic welding heads, feeding systems, CNC, and programmable logic controllers.

A-58 Gun

    • The A-58 stud welding gun is handy, lightweight electronically controlled gun with automatic length compensation, designed for universal applications. This compact gun is ideal for fielding welding work, and its compact size enables use in hard to reach areas.
    • Welds any length pins with a diameter range of Ø 3 mm through Ø 16 mm.
  • Welds any length studs with a diameter range of M 3 through M 16.

Features:

    • Compact and tough for heavy duty use.
    • Automatic length compensation system ensured by new type of lift mechanism.
    • High service life through high-grade mechanical components.
    • Space saving due to internal welding cable.
    • More powerful solenoid for faster welding.
  • Precision guidance protected from welding spatters.

Stiftlasmachines Condensator Ontlading (CD)

Nomark 65+

Lasbereik M3 – M8
Materiaal Staal, roestvrij staal, aluminium, messing
Lasbron Condensatoren batterij
Lasproces "Contact" en "GAP"
Capaciteit 66.000 mF
Laadspanning 50 – 200 V (UP en DOWN)
Lastijd 0,002 – 0,007 sec.
Digitale Voltmeter Ja
Inschakelduur tot 10 noppen / min
Outputvermogen 1.320 Ws
Stroomvoorziening 230 V – 50/60 Hz – 10 AT
Afmetingen (b x h x l) 165 x 250 x 380 mm
Gewicht 12,5 kg

C1 Contact

Lasbereik M3 tot M8 (M10)
Nagellengtebereik 6 tot 40 mm
Stiftlengte tot 110 mm (met optionele pinnenhouder), + 110 mm (met ISO-set)
Lasproces "Contact"
Springinstellingen Traploos instelbaar
Kabellengte 4 meter
Gewicht (zonder kabel) 0,7 kg

G1 Contact Stiftlaspistool

Lasbereik M3 tot M8 (M10)
Nagellengtebereik 6 tot 40 mm
Stiftlengte tot 100 mm (met optionele pinnenhouder), + 100 mm (met ISO-set)
Lasproces Gap
Springinstellingen Traploos instelbaar
Kabellengte 3 meter (zeer flexibel)
Gewicht (zonder kabel) 0,6 kg

Nomark 65+

  • This new line of Microprocessor controlled Capacitor Discharge stud welding equipments incorporates the latest solid state technology into a compact and rugged CD Stud Welder
  • This unit has the capacity to weld studs ranging from 3 mm through 8 mm (10 mm) full flanged studs and pins (including cupped head pins)
  • The NOMARK 65+ or NOMARK 99+ meets the highest requirements due to operating convenience, precise process times, optimal functional reliability, lightweight and easily portable, compact design, absolute safety (Safety Shutdown) and Low cost
  • The monitoring of all functions is clearly displayed by LED on the front panel
  • Thermostatically controlled cooling fan in all models for increased efficiency

Nomark 99

Lasbereik M3 – M10
Materiaal Staal, roestvrij staal
Lasbron Condensatoren batterij
Lasproces "Contact"
Capaciteit 99.000 mF
Laadspanning 40 – 200 V (Bi-directional)
Lastijd 0,002 – 0,008 sec.
LED-spanningsmeter Ja
Inschakelduur tot 20 noppen / min
Outputvermogen 1.980 Ws
Stroomvoorziening 230 V – 50/60 Hz – 10 AT
Afmetingen (b x h x l) 165 x 250 x 380 mm
Bescherming IP 21
Gewicht 16 kg

C1 Contact

Lasbereik M3 tot M8 (M10)
Nagellengtebereik 6 tot 40 mm
Stiftlengte tot 110 mm (met optionele pinnenhouder), + 110 mm (met ISO-set)
Lasproces "Contact"
Springinstellingen Traploos instelbaar
Kabellengte 4 meter
Gewicht (zonder kabel) 0,7 kg

G1 Contact Stiftlaspistool

Lasbereik M3 tot M8 (M10)
Nagellengtebereik 6 tot 40 mm
Stiftlengte tot 100 mm (met optionele pinnenhouder), + 100 mm (met ISO-set)
Lasproces Gap
Springinstellingen Traploos instelbaar
Kabellengte 3 meter (zeer flexibel)
Gewicht (zonder kabel) 0,6 kg

Nomark 99+

  • This new line of Microprocessor controlled Capacitor Discharge stud welding equipments incorporates the latest solid state technology into a compact and rugged CD Stud Welder
  • This unit has the capacity to weld studs ranging from 3 mm through 8 mm (10 mm) full flanged studs and pins (including cupped head pins)
  • The NOMARK 65+ or NOMARK 99+ meets the highest requirements due to operating convenience, precise process times, optimal functional reliability, lightweight and easily portable, compact design, absolute safety (Safety Shutdown) and Low cost
  • The monitoring of all functions is clearly displayed by LED on the front panel
  • Thermostatically controlled cooling fan in all models for increased efficiency

Nomark 65

Lasbereik M3 – M8
Materiaal Staal, roestvrij staal
Lasproces "Contact"
Capaciteit 66.000 mF
Laadspanning 50 – 200 V (dial-down)
Digitale voltmeter Ja
Inschakelduur tot 10 noppen / min
Outputvermogen 1.320 Ws
Stroomvoorziening 230 V – 50/60 Hz – 10 AT
Afmetingen (b x h x l) 165 x 250 x 380 mm
Gewicht 12,5 kg

C0 Contact Stiftlaspistool

Lasbereik M3 tot M8 (M10)
Nagellengtebereik 6 tot 40 mm
Stiftlengte 10 tot 150 mm (met optionele pinnenhouder), + 150 mm (met ISO-set)
Lasproces "Contact"
Springinstellingen Traploos instelbaar
Kabellengte 4 meter
Gewicht (zonder kabel) 0,7 kg

Nomark 65

  • This new line of Microprocessor controlled Capacitor Discharge stud welding equipments incorporates the latest solid state technology into a compact and rugged CD Stud Welder
  • This unit has the capacity to weld studs ranging from 3 mm through 8 mm (10 mm) full flanged studs and pins (including cupped head pins)
  • The NOMARK 65 or NOMARK 99 meets the highest requirements due to operating convenience, precise process times, optimal functional reliability, lightweight and easily portable, compact design, absolute safety (Safety Shutdown) and Low cost
  • The monitoring of all functions is clearly displayed by LED on the front panel
  • Thermostatically controlled cooling fan in all models for increased efficiency

Nomark 99

Lasbereik M3 – M10
Materiaal Staal, roestvrij staal
Lasbron Condensatoren batterij
Lasproces "Contact"
Capaciteit 99.000 mF
Laadspanning 40 – 200 V (Bi-directional)
Lastijd 0,002 – 0,008 sec.
LED-spanningsmeter Ja
Inschakelduur tot 20 noppen / min
Outputvermogen 1.980 Ws
Stroomvoorziening 230 V – 50/60 Hz – 10 AT
Afmetingen (b x h x l) 165 x 250 x 380 mm
Bescherming IP 21
Gewicht 16 kg

C0 Contact Stiftlaspistool

Lasbereik M3 tot M8 (M10)
Nagellengtebereik 6 tot 40 mm
Stiftlengte 10 tot 150 mm (met optionele pinnenhouder), + 150 mm (met ISO-set)
Lasproces "Contact"
Springinstellingen Traploos instelbaar
Kabellengte 4 meter
Gewicht (zonder kabel) 0,7 kg

Nomark 99

  • This new line of Microprocessor controlled Capacitor Discharge stud welding equipments incorporates the latest solid state technology into a compact and rugged CD Stud Welder
  • This unit has the capacity to weld studs ranging from 3 mm through 8 mm (10 mm) full flanged studs and pins (including cupped head pins)
  • The NOMARK 65 or NOMARK 99 meets the highest requirements due to operating convenience, precise process times, optimal functional reliability, lightweight and easily portable, compact design, absolute safety (Safety Shutdown) and Low cost
  • The monitoring of all functions is clearly displayed by LED on the front panel
  • Thermostatically controlled cooling fan in all models for increased efficiency

Nomark 132

Lasbereik M3 – M10
Materiaal Staal, roestvrij staal
Lasproces "Contact"
Capaciteit 132.000 mF
Laadspanning 40 – 200 V (dial down)
LED-spanningsmeter Ja
Inschakelduur tot 5 noppen / min
Outputvermogen 2640 Ws
Stroomvoorziening 230 V – 50/60 Hz – 10 AT
Afmetingen (b x h x l) 165 x 250 x 380 mm
Gewicht 14,5 kg

C0 Contact Stiftlaspistool

Lasbereik M3 tot M8 (M10)
Nagellengtebereik 6 tot 40 mm
Stiftlengte 10 tot 150 mm (met optionele pinnenhouder), + 150 mm (met ISO-set)
Lasproces "Contact"
Springinstellingen Traploos instelbaar
Kabellengte 4 meter
Gewicht (zonder kabel) 0,7 kg

Nomark 132

  • This new line of Microprocessor controlled Capacitor Discharge stud welding equipments incorporates the latest solid state technology into a compact and rugged CD Stud Welder
  • This unit has the capacity to weld studs ranging from 3 mm through 8 mm (10 mm) full flanged studs and pins (including cupped head pins)
  • The NOMARK 65 or NOMARK 99 meets the highest requirements due to operating convenience, precise process times, optimal functional reliability, lightweight and easily portable, compact design, absolute safety (Safety Shutdown) and Low cost
  • The monitoring of all functions is clearly displayed by LED on the front panel
  • Thermostatically controlled cooling fan in all models for increased efficiency

Nomark 66

Lasbereik M3 – M8
Materiaal Staal, roestvrij staal, aluminium, messing
Lasproces "Contact" en "GAP"
Capaciteit 66.000 mF
Laadspanning 50 – 200 V (UP & DOWN)
LED-spanningsmeter Ja
Inschakelduur tot 30 noppen / min
Outputvermogen 1.320 Ws
Stroomvoorziening 230 V – 50/60 Hz – 10 AT
Afmetingen (b x h x l) 195 x 265 x 400 mm
Gewicht 12 kg

C1 Contact

Lasbereik M3 tot M8 (M10)
Nagellengtebereik 6 tot 40 mm
Stiftlengte tot 110 mm (met optionele pinnenhouder), + 110 mm (met ISO-set)
Lasproces "Contact"
Springinstellingen Traploos instelbaar
Kabellengte 4 meter
Gewicht (zonder kabel) 0,7 kg

G1 Contact Stiftlaspistool

Lasbereik M3 tot M8 (M10)
Nagellengtebereik 6 tot 40 mm
Stiftlengte tot 100 mm (met optionele pinnenhouder), + 100 mm (met ISO-set)
Lasproces Gap
Springinstellingen Traploos instelbaar
Kabellengte 3 meter (zeer flexibel)
Gewicht (zonder kabel) 0,6 kg

Nomark 66

  • This new line of Microprocessor controlled Capacitor Discharge stud welding equipments incorporates the latest solid state technology into a compact and rugged CD Stud Welder
  • This unit has the capacity to weld studs ranging from 3 mm through 8 mm (10 mm) full flanged studs and pins (including cupped head pins)
  • The monitoring of all functions is clearly displayed by LED on the front panel. The short charging cycles increase productivity.
  • Inverter power modules replace traditional heavy transformer rectifiers, are more efficient to use and faster to charge.
  • Lightweight and easily portable, the NOMARK 66 weighs in at around half of many other conventional studwelding equipment
  • Thermostatically controlled cooling fan in NOMARK 88 for increased efficiency

Nomark 88

Lasbereik M3 – M8 (M10)
Materiaal Staal, roestvrij staal, aluminium
Lasproces "Contact" en "GAP"
Capaciteit 90.000 mF
Laadspanning 50 – 200 V (UP & DOWN)
LED-spanningsmeter Ja
Inschakelduur tot 25 noppen / min
Outputvermogen 19.80 Ws
Stroomvoorziening 230 V – 50/60 Hz – 10 AT
Afmetingen (b x h x l) 195 x 265 x 400 mm
Gewicht 13,5 kg

C1 Contact

Lasbereik M3 tot M8 (M10)
Nagellengtebereik 6 tot 40 mm
Stiftlengte tot 110 mm (met optionele pinnenhouder), + 110 mm (met ISO-set)
Lasproces "Contact"
Springinstellingen Traploos instelbaar
Kabellengte 4 meter
Gewicht (zonder kabel) 0,7 kg

G1 Contact Stiftlaspistool

Lasbereik M3 tot M8 (M10)
Nagellengtebereik 6 tot 40 mm
Stiftlengte tot 100 mm (met optionele pinnenhouder), + 100 mm (met ISO-set)
Lasproces Gap
Springinstellingen Traploos instelbaar
Kabellengte 3 meter (zeer flexibel)
Gewicht (zonder kabel) 0,6 kg

Nomark 88

  • This new line of Microprocessor controlled Capacitor Discharge stud welding equipments incorporates the latest solid state technology into a compact and rugged CD Stud Welder
  • This unit has the capacity to weld studs ranging from 3 mm through 8 mm (10 mm) full flanged studs and pins (including cupped head pins)
  • The monitoring of all functions is clearly displayed by LED on the front panel. The short charging cycles increase productivity.
  • Inverter power modules replace traditional heavy transformer rectifiers, are more efficient to use and faster to charge.
  • Lightweight and easily portable, the NOMARK 66 weighs in at around half of many other conventional studwelding equipment
  • Thermostatically controlled cooling fan in NOMARK 88 for increased efficiency

Stiftlasmachines (Conventioneel)

MicroMark 900

Lasbereik M3 - M12 (M14)
Short cycle range M3 - M8
Materiaal Staal, roestvrij staal, aluminium (met gas)
Lasstroom 100 - 900 A (regulated)
Lastijd 12 mS tot 1400 mS
Voedingsspanning 230 V / 400 V - 32 A
Afmetingen (b x h x l) 520 x 730 x 820 mm
Gewicht 89 kg
Inert Gas IP 21
Optioneel Inert Gas, 2 outputs met afzonderlijke instellingen

A 38 Gun

Lasbereik M3 tot M12
Lasproces Drawn Arc
Stiftmateriaal Zacht staal, roestvrij staal
Insteekinstellingen Traploos instelbaar
Kabelgedeelte 35 mm2
Kabellengte 5 meter (erg flexibel)
Gewicht (zonder kabel) 0,8 kg

MicroMark 900

  • The MICROMARK 900 drawn arc stud welding unit : This line of stud welding equipments is a unique, fully programmable, microprocessor-controlled stud welding system with great versatility and near-perfect reliability.Features include :
    – 9 memories,
    – Immediate digital verification of all weld parameters,
    – Diagnosis of weld and system deviations,
    – Self-monitoring system,
    – Computer/printer connection,
    – Large display…. In other words, you’ll get a perfect weld every time – or no weld at all. And in either case, you’ll know why !

A 38 Gun

  • The Bantam A-38 stud welding gun is a multi-purpose, compact, lightweight tool designed for use in the arc stud welding process, ideal for fielding welding work, and its compact size enables use in hard to reach areas.
  • Welds any length studs with a diameter range of M 3 through M 12
  • Features:
    – Compact and tough for heavy duty use.
    – Automatic length compensation system for different stud lengths and surface conditions
    – High service life through high-grade mechanical components
    – Space saving due to internal welding cable
    .  – More powerful solenoid for faster welding.
    – Precision guidance protected from welding spatters

MicroMark 1400

Lasbereik M3 - M16 (M18)
Short cycle range M3 - M12
Materiaal Staal, roestvrij staal, aluminium (met gas)
Lasstroom 100 - 1400 A (regulated)
Lastijd 12 mS tot 1400 mS
Voedingsspanning 230 V - 63 A / 400 V - 50 A
Afmetingen (b x h x l) 425 x 720 x 770 mm
Gewicht 159 kg
Inert Gas IP 21
Optioneel Inert Gas, 2 of 4 outputs met afzonderlijke instellingen

A 58 P Gun

Lasbereik M3 tot M16 (M20)
Lasproces Drawn Arc
Stiftmateriaal Zacht staal, roestvrij staal
Insteekinstellingen Traploos instelbaar
Kabelgedeelte 50 mm2
Kabellengte 5 meter (erg flexibel)
Gewicht (zonder kabel) 1,95 kg

MicroMark 1400

  • The MICROMARK 1400 drawn arc stud welding unit : This line of stud welding equipments is a unique, fully programmable, microprocessor-controlled stud welding system with great versatility and near-perfect reliability.Features include :
    – 9 memories,
    – Immediate digital verification of all weld parameters,
    – Diagnosis of weld and system deviations,
    – Self-monitoring system,
    – Computer/printer connection,
    – Large display…. In other words, you’ll get a perfect weld every time – or no weld at all. And in either case, you’ll know why !

A 58 P Gun

  • This handy, electronically controlled gun with automatic length compensation and continuous hydraulic damping is designed for universal use.
  • This compact gun is ideal for fielding welding work.
  • Features:
    – Welds any length studs with a diameter range of M 3 through M 16 (M 20 HD Model)
    – Automatic length compensation system for different stud lengths and surface conditions
    – High service life through high-grade mechanical components
    – Space saving due to internal welding cable.
    – More powerful solenoid for faster welding.
    – Precision guidance protected from welding spatters
  • Optional: HD Model (With external welding current cable, allowing welding at high welding rates up till M20

MicroMark 2100

Lasbereik M3 - M22 (M24)
Short cycle range M3 - M12
Materiaal Staal, roestvrij staal, aluminium (met gas)
Lasstroom 100 - 2100 A (regulated)
Lastijd 12 mS tot 1400 mS
Voedingsspanning 230 V / 400 V - 63 A
Afmetingen (b x h x l) 520 x 730 x 820 mm
Gewicht 245 kg
Inert Gas IP 21
Optioneel Inert Gas, 2 outputs met afzonderlijke instellingen

A 58 P Gun

Lasbereik M3 tot M16 (M20)
Lasproces Drawn Arc
Stiftmateriaal Zacht staal, roestvrij staal
Insteekinstellingen Traploos instelbaar
Kabelgedeelte 50 mm2
Kabellengte 5 meter (erg flexibel)
Gewicht (zonder kabel) 1,95 kg

Safeguard 20

Lasbereik M3 tot M30
Lasproces Drawn Arc
Stiftmateriaal Zacht staal, roestvrij staal
Insteekinstellingen Traploos instelbaar
Kabelgedeelte 95 / 120 mm²
Kabellengte 2,5 m
Gewicht (zonder kabel) 2,9 kg

MicroMark 2100

  • The MICROMARK 2100 drawn arc stud welding unit : This line of stud welding equipments is a unique, fully programmable, microprocessor-controlled stud welding system with great versatility and near-perfect reliability.Features include :
    – 9 memories,
    – Immediate digital verification of all weld parameters,
    – Diagnosis of weld and system deviations,
    – Self-monitoring system,
    – Computer/printer connection,
    – Large display…. In other words, you’ll get a perfect weld every time – or no weld at all. And in either case, you’ll know why !

A 58 P Gun

  • This handy, electronically controlled gun with automatic length compensation and continuous hydraulic damping is designed for universal use.
  • This compact gun is ideal for fielding welding work.
  • Features:
    – Welds any length studs with a diameter range of M 3 through M 16 (M 20 HD Model)
    – Automatic length compensation system for different stud lengths and surface conditions
    – High service life through high-grade mechanical components
    – Space saving due to internal welding cable.
    – More powerful solenoid for faster welding.
    – Precision guidance protected from welding spatters
  • Optional: HD Model (With external welding current cable, allowing welding at high welding rates up till M20

SAFEGUARD 20 Gun

  • This handy, electronically controlled gun with automatic length compensation and continuous hydraulic damping is designed for universal use.
  • This compact gun is ideal for fielding welding work.
  • Features:
    – Welds any length studs with a diameter range of M 3 through M 25
    – Automatic length compensation system for different stud lengths and surface conditions
    – High service life through high-grade mechanical components
    – Space saving due to internal welding cable.
    – More powerful solenoid for faster welding.
    – Precision guidance protected from welding spatters

MicroMark 2500

Stud range M3 - M25 (M30)
Short cycle range M3 - M30
Materiaal Staal, roestvrij staal, aluminium (met gas)
Lasstroom 100 - 2500 A (regulated)
Lastijd 12 mS tot 1400 mS
Voedingsspanning 230 V - 63 A / 400 V - 80 A
Afmetingen (b x h x l) 650 x 950 x 1100 mm
Gewicht 450 kg
Inert Gas IP 21
Optioneel Inert Gas, 2 outputs met afzonderlijke instellingen

Safeguard 20

Lasbereik M3 tot M30
Lasproces Drawn Arc
Stiftmateriaal Zacht staal, roestvrij staal
Insteekinstellingen Traploos instelbaar
Kabelgedeelte 95 / 120 mm²
Kabellengte 2,5 m
Gewicht (zonder kabel) 2,9 kg

MicroMark 2500

  • The MICROMARK 2500 drawn arc stud welding unit : This line of stud welding equipments is a unique, fully programmable, microprocessor-controlled stud welding system with great versatility and near-perfect reliability.Features include :
    – 9 memories,
    – Immediate digital verification of all weld parameters,
    – Diagnosis of weld and system deviations,
    – Self-monitoring system,
    – Computer/printer connection,
    – Large display…. In other words, you’ll get a perfect weld every time – or no weld at all. And in either case, you’ll know why !

SAFEGUARD 20 Gun

  • This handy, electronically controlled gun with automatic length compensation and continuous hydraulic damping is designed for universal use.
  • This compact gun is ideal for fielding welding work.
  • Features:
    – Welds any length studs with a diameter range of M 3 through M 25
    – Automatic length compensation system for different stud lengths and surface conditions
    – High service life through high-grade mechanical components
    – Space saving due to internal welding cable.
    – More powerful solenoid for faster welding.
    – Precision guidance protected from welding spatters
